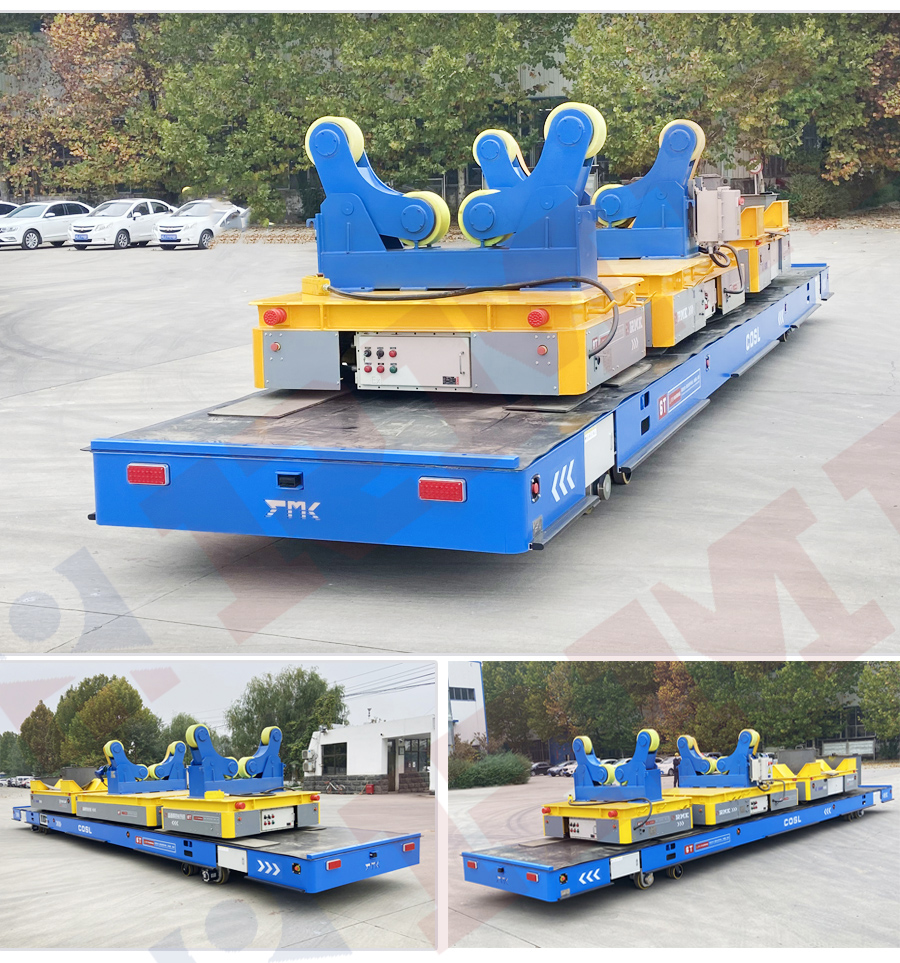

Transportation pipeline Electric Powered Transfer Carts
The REMARKABLE transfer carts are driven by electric motors, mainly
non-hydraulic motors, which offer a series of advantages. There are
both economic and environmental benefits such as lower maintenance
costs, cleaner operations (no risk of oil leakages) and the battery
lifetime has a long duration.
Security is Guaranteed: A popularsolution is to equip the cart with
laser scanner technology to ensure safe operations. An alternative
safety feature are bumpers, made of foam materials, to avoid any
risk of injury. In the case of the battery powered cart following a
permanent route there is the option of using a semi-agv vehicle
which follows a floor track marking with several guide technologies
being available.
For more volatile environments REMARKABLE provides an Special
series version. Apart from the more obvious sectors such as oil and
gas and the mining sector, this is often a useful solution to apply
in the case of transporting equipment into industrial painting
booths.
Operator Control: REMARKABLE electric powered transfer carts are
normally operated by remote control although when required may be
equipped with an onboard driver’s cabin depending on the client’s
requirements.
Technical Support: all models can be equipped with a remote
assistance board allowing REMARKABLE to provide diagnostic support
and ensure an efficient after-sales service directly from the
production plant.
On request:
We can supply our heavy duty electric pallet transfer cart in AGV
version (automated guided vehicles). We can also supply individual
automatic pallet transfer cart or entire fleets, including a
management system, with different navigation technologies, from the
simplest to the most advanced.
Automatic trolleys are becoming increasingly popular in all sectors
and could, therefore, also be what you are looking for. Visit our
section dedicated to AGVs
We can manufacture ATEX- and IECEx-certified heavy duty transfer
trolleys, suitable for working in explosive environments, such as
paint booths, refineries, FPSO/FLNG vessels and offshore platforms.
The pallet trucks for ships and oil platforms are suitable for
working in an offshore environment and, therefore, feature specific
paint-coating cycles and electrical components.
within the work environment.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| ground requirement | cement floor | steel plate ground |
|
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| ground clearance(mm) | 50 | 75 |
| wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-15 | 0-12 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| charger function | automatic charging |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
